Single flow decentralised mechanical ventilation unit for continuous running, Ø100mm, constant volume and low consumption. Ideal for application in bathroom, toilet and small/medium premises. Suitable to extract stale air directly to the outside or through mediumlong length ducting. Units can be wall/panel, ceiling and window mounted.
Single flow decentralised mechanical ventilation unit for continuous running, Ø100mm, constant volume and low consumption. Ideal for application in bathroom, toilet and small/medium premises. Suitable to extract stale air directly to the outside or through mediumlong length ducting. Units can be wall/ panel, ceiling and window mounted.
Casing made of high quality ABS provides long lasting shock-proof and robust construction. The unit is finished in white RAL 9010 and are UV resistant High efficient mixed flow impeller, providing enhanced aerodynamic properties, low noise and increased performances.
EC brushless motor with integral thermal protection, mounted on sealed for life high quality ball bearings to assure a longer fan life and ideal for cold climates.
7 segment LED display, visible by removing the design front cover.
IPX4 protection degree.
Aesthetic flat front cover for modern interior design, easily removed for cleaning without the need of tools.
Aerodynamic deflectors on the housing to reduce air turbulences and designed to maximise airflow.
Multi-speed, with adjustable minimum, intermediate and maximum speeds among different settings
Low power consumption: EC motor optimised for continuous running applications (24/24h)
Constant flow option, to speed up or slow down the unit depending on the variations of the resistances caused by long length ducting or external windy conditions.
Intelligent control of humidity and run-on timer, to adapt the fan operation to the tenant’s habits and assure top acoustic comfort especially at night time.
Ease of configuration through external buttons.
Run hour counter integrated.
Additional safety feature: when the design front cover is removed, the impeller stops turning to configure the unit.
Totally recyclable plastic components, environmentally friendly.
Double insulated: no earth connection is required.
Tested to the latest standards: units are tested in the TÜV Rheinland recognised laboratory at Aerauliqa, meaning accurate, up to date information on electrical safety, performance and noise level that can be relied upon.
Designed and manufactured in accordance with EN60335-2-80 (Low Voltage Directive) and the EMC Directive (Electromagnetic Compatibility).
The unit continues to run at the selected minimum speed which automatically increases to intermediate speed if either humidistat or run-on timer are activated.
The humidity threshold can be set between 65% and 95% R.H. ; the run-on timer can be adjusted between 1 and 25 minutes.

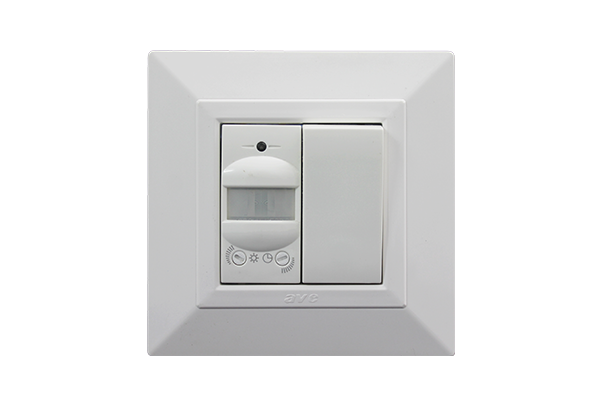

The maximum speed can be activated through dedicated remote on/ off switch, ambient sensor (e.g. SEN-HY or SEN-PIR), or through light switch.
