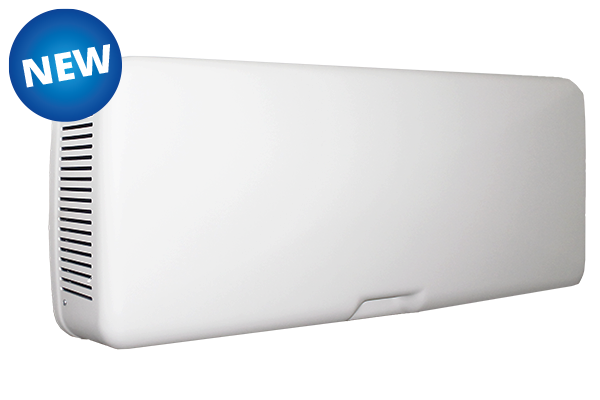

Decentralised dual-flow unit with sensible and latent heat recovery, suitable for wall installation in premises such as offices, waiting rooms and school rooms, up to 75m².
Decentralised dual-flow unit with sensible and latent heat recovery, suitable for wall installation in premises such as offices, waiting rooms and school rooms, up to 75m².
Outer fan casing manufactured from high quality ABS providing long lasting and robust construction. The unit is finished in white RAL 9010.
Internal structure manufactured from expanded polypropylene providing reduced sound emissions and maximised air tightness and thermal insulation.
EC external rotor motors fitted as standard for energy saving. Provided with integral thermal protection, mounted on sealed for life ball bearings.
Backward curved centrifugal impeller dynamically balanced and directly driven by the motor to provide a smooth airflow through the unit.
Enthalpic heat exchanger with high thermal and latent efficiency. Made of antimicrobial technology, the builtin polymer membrane is mould and bacteria resistant: it also prevents the air flows contamination and block the odours. The special configuration generates low pressure drop.
Ease of installation & money saving: no need to plan/install any complicated ducting system.
Silent operation thanks to the fact that the brushless motors are inside the EPP (expanded polypropylene) structure which attenuates the sound.
Enthalpic heat exchanger suitable to transfer thermal energy and humidity from one airflow to the other, keeping the correct indoor humidity level (40-60%). During winter time, for example, it prevents that indoor air becomes too dry: in summer, instead, the humidity of the outdoor warm air is not transferred to the indoor cool air.
ISO ePM10 50% (M5) filters easy removable for cleaning. ISO ePM1 50% (F7) filter on request.
Automatic anti-frost protection to prevent frost building up on the exhaust side of the heat exchanger.
No condensate drain required.
Tested to the latest standards: units are tested in the TÜV Rheinland accredited internal laboratory at Aerauliqa according to the operating document IEC OD 2048 (level CTF1) for the IEC 60335-1 and IEC 60335-2-80 Standards, meaning accurate, up to date information on electrical safety, performance and noise level that can be relied upon. Designed and manufactured in accordance with EN60335-2-80 (Low Voltage Directive) and the EMC Directive (Electromagnetic Compatibility).
